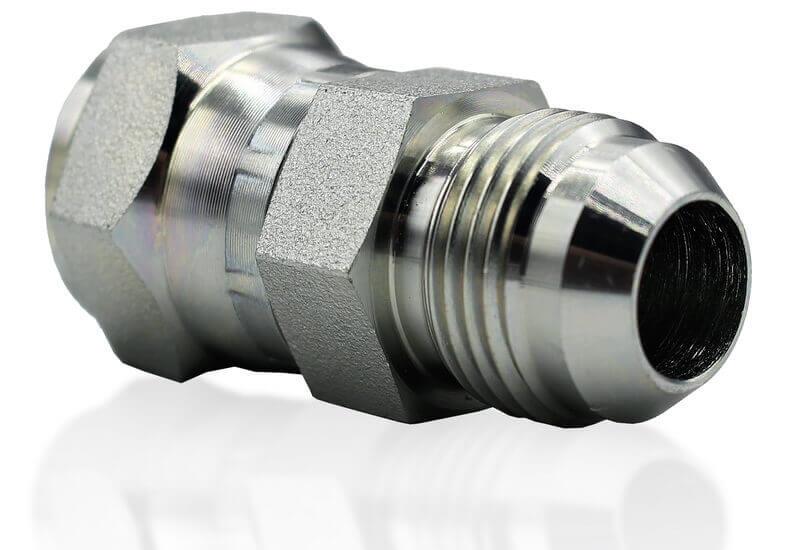

Niplu legatura trecere podea filet JIC 74°
| Tip Filet | JIC |
| Conector F1 | JIC filet exterior |
| Etansare F1 | Con exterior 74° |
| Conector F2 | JIC filet exterior |
| Etansare F2 | Con exterior 74° |
| Material | Otel |
| Suprafata | Electro-galvanizare |
| Forma constructiva | Drept |
Caracteristici
| Cod | F1 | F2 | CH | L1 | L2 | L | PN | DN |
|---|---|---|---|---|---|---|---|---|
| 7/16''-20 | 7/16''-20 | 17 | 14.0 | 31.5 | 52.5 | 345 | - | |
| 1/2''-14 | 1/2''-14 | 19 | 14.0 | 31.5 | 52.5 | 345 | 12 | |
| 9/16''-18 | 9/16''-18 | 22 | 14.1 | 33.5 | 55.5 | 345 | - | |
| 3/4''-16 | 3/4''-16 | 24 | 16.7 | 36.6 | 61.0 | 310 | - | |
| 7/8''-14 | 7/8''-14 | 30 | 19.3 | 41.1 | 69.5 | 240 | - | |
| 1.1/16''-12 | 1.1/16''-12 | 36 | 21.9 | 45.4 | 78.5 | 240 | 20 | |
| 1.5/16''-12 | 1.5/16''-12 | 41 | 23.1 | 45.4 | 80.0 | 25 | 25 | |
| 1.5/8''-12 | 1.5/8''-12 | 50 | 24.3 | 46.7 | 84.0 | 170 | - | |
| 1.7/8''-12 | 1.7/8''-12 | 55 | 27.5 | 47.0 | 89.5 | 140 | 40 |
