Componente hidraulice Armaturi hidraulice Racorduri interlock ORFS

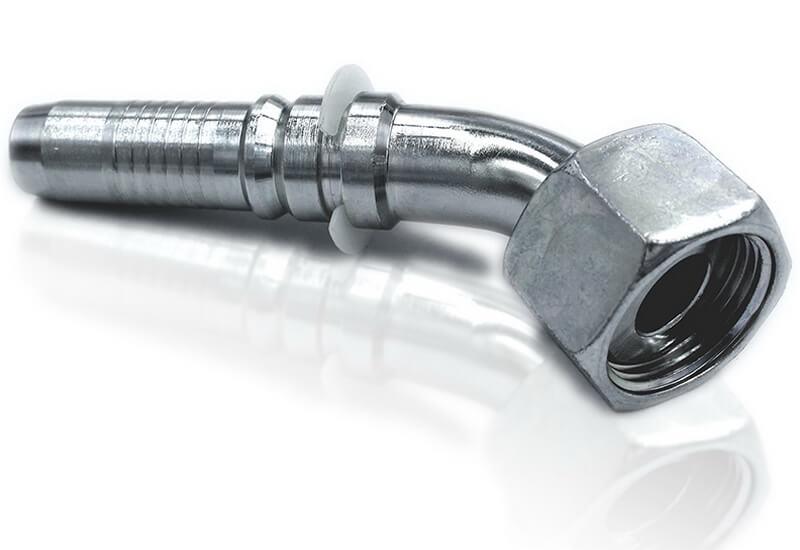

Armatura Interlock cotita la 45 cu holender tip ORFS

Denumire IORFS 45°
Aplicatii Linii hidraulice
Conexiune racord Holender tip UN/UNF
Tip Etansare Etansare Plana
Material Otel
Finisare suprafata Electro-galvanizare
SCAT IP14 Banner WCN 01121

Caracteristici

Cod DN DF F CH A B PN
16 16.0 1.3/16''-12 - - - -
20 19.0 1.3/16''-12 36 55.5 23.0 420
20 19.0 1.7/16''-12 41 60.0 27.0 410
25 25.4 1.7/16''-12 41 78.5 26.0 410
25 25.4 1.11/16''-12 - - - 250
32 31.8 1.11/16''-12 50 91.5 34.0 250
