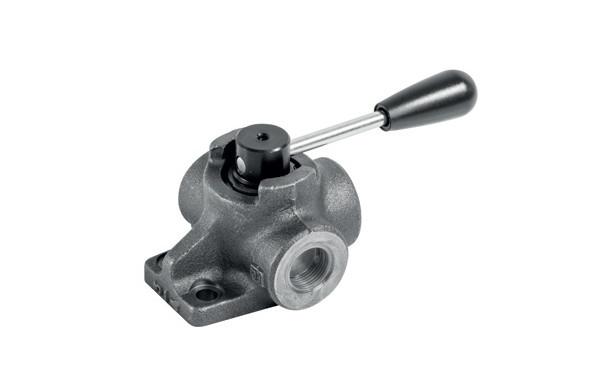

Robinet hidraulic 3 cai divertor filete interioare BSP
| Tip | D3V |
| Tip Filet | BSPP |
| Material etansare | NBR-FKM-EPDM-MVQ |
| Gama presiune | Medie |
Caracteristici
| Cod | DN | Filet | A | C | D | G | H | I | L | N | LW | PN | B | E | F | Greutate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 3/8''-19 | G3/8 | 25 | 26 | 8.5 | 67 | 68 | 76 | 140 | 35 L/MIN | 250 | - | - | - | - | |
| 6 | 1/4''-19 | G1/4 | 62 | 77 | 24 | 8.5 | - | 169 | 41 | 40 L/MIN | 300 | 128 | 21 | 73 | 0.950 | |
| 12 | 1/2''-14 | G1/2 | 28 | 70 | 8.5 | 70 | 80 | 87 | 145 | 60 L/MIN | 250 | - | - | - | - | |
| 20 | 3/4''-14 | G3/4 | 30 | 78 | 11 | 78 | 94 | 103 | 145 | 100 L/MIN | 250 | - | - | - | - | |
| 25 | 1''-11 | G1 | 30 | 82 | 11.0 | 82 | 98 | 105 | 152 | 180 L/MIN | 250 | - | - | - | - |
