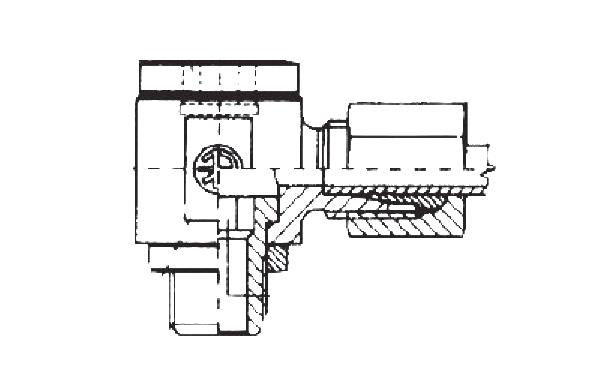

TN 130 SM Racord orientabil filet METRIC
| Tip Filet | METRIC |
| Conector F1 | Filet METRIC exterior cilindric |
| Etansare F1 | Con interior 24° |
| Conector F2 | Filet METRIC exterior cilindric |
| Echipare | Corp (fara piulita si inel de taiere) |
| Standard | DIN 2353/ISO 8434-1 |
| Material | Otel |
| Suprafata | Galvanizare |
Caracteristici
| Cod | PN | Diametru teava | Ød1 | F | CH1 | CH2 | CH3 | ØN | I | L | L10 | L11 | L12 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 160 | 6 | 6 | M12x1.5 | 17 | 6 | 22 | 17 | 12 | 31 | 16.5 | 15 | 30 | |
| 160 | 8 | 8 | M14x1.5 | 19 | 8 | 22 | 19 | 12 | 31 | 16.5 | 16 | 30 | |
| 100 | 10 | 10 | M16x1.5 | 22 | 10 | 27 | 21 | 12 | 35 | 18.5 | 18 | 37 | |
| 100 | 12 | 12 | M18x1.5 | 24 | 12 | 30 | 23 | 12 | 37 | 20.5 | 20 | 41 | |
| 100 | 14 | 14 | M20x1.5 | 27 | 12 | 32 | 25 | 14 | 41 | 23 | 21 | 42 | |
| 100 | 16 | 16 | M22x1.5 | 30 | 14 | 36 | 27 | 14 | 41 | 22.5 | 23 | 46 | |
| 100 | 20 | 20 | M27x2 | 36 | 17 | 46 | 32 | 16 | 49 | 27.5 | 28 | 58 | |
| 100 | 25 | 25 | M33x2 | 46 | 22 | 50 | 39 | 18 | 55 | 31 | 32 | 64 | |
| 60 | 30 | 30 | M42x2 | 50 | 27 | 60 | 49 | 20 | 63 | 36.5 | 37 | 76 | |
| 60 | 38 | 38 | M48x2 | 60 | 32 | 70 | 55 | 22 | 72 | 41 | 42 | 85 |
