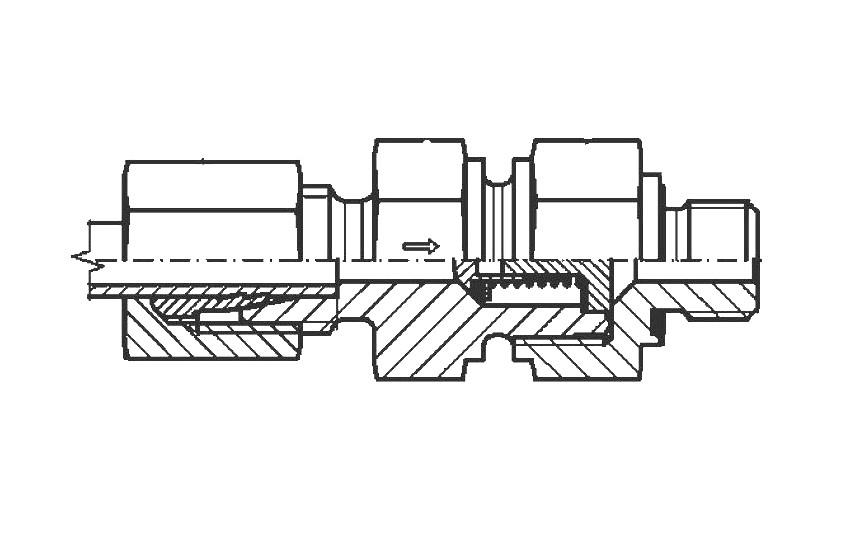

TN 108GG SR Supapa de sens filet exterior BSP (sens tub spre filet)
| Tip Filet | BSPP |
| Conector F1 | Filet METRIC exterior cilindric |
| Etansare F1 | Con interior 24° |
| Conector F2 | Filet BSPP exterior cilindric |
| Etansare F2 | Forma E |
| Echipare | Corp (fara piulita si inel de taiere) |
| Standard | DIN 2353/ISO 8434-1 |
| Material | Otel |
| Suprafata | Galvanizare |
Caracteristici
| Cod | PN | Diametru teava | Ød1 | F | CH1 | CH5 | CH6 | ØN | I | L | L1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 400 | 6 | 6 | 1/4''-19 | 17 | 19 | 19 | 19 | 12 | 46 | 31.5 | |
| 400 | 8 | 8 | 1/4''-19 | 19 | 19 | 19 | 19 | 12 | 46 | 31.5 | |
| 400 | 10 | 10 | 3/8''-19 | 22 | 22 | 24 | 22 | 12 | 54 | 38 | |
| 400 | 12 | 12 | 3/8''-19 | 24 | 24 | 27 | 22 | 12 | 57 | 41 | |
| 400 | 14 | 14 | 1/2''-14 | 27 | 27 | 32 | 27 | 14 | 61 | 43.5 | |
| 400 | 16 | 16 | 1/2''-14 | 30 | 32 | 36 | 27 | 14 | 64 | 46 | |
| 400 | 20 | 20 | 3/4''-14 | 36 | 41 | 46 | 32 | 16 | 71.5 | 50 | |
| 250 | 25 | 25 | 1''-11 | 46 | 46 | 50 | 40 | 18 | 78.5 | 54.5 | |
| 250 | 30 | 30 | 1.1/4''-11 | 50 | 60 | 60 | 50 | 20 | 90.5 | 64 | |
| 250 | 38 | 38 | 1.1/2''-11 | 60 | 65 | 70 | 55 | 22 | 102 | 71.5 |
